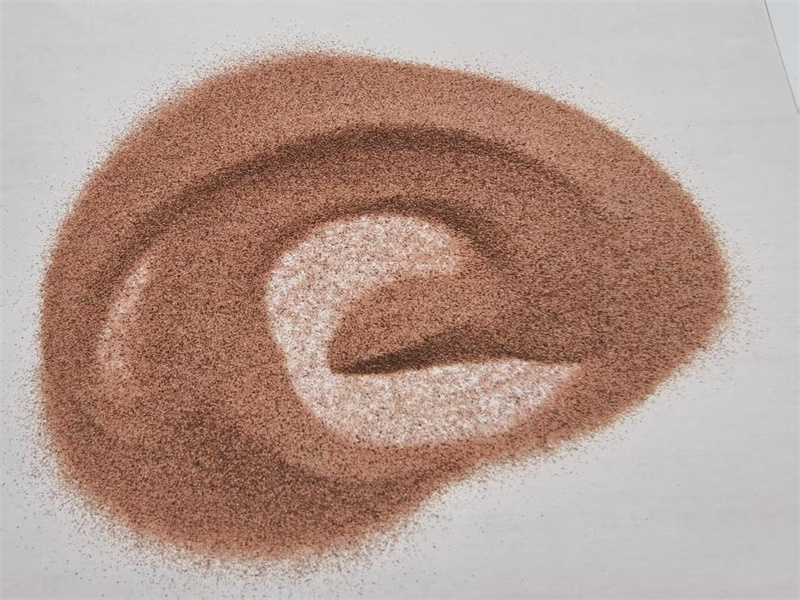

PINK GARNET SAND

Pink Sea Garnet sand is a garnet abrasive that has eroded from rock garnet and has been carried by natural processes into seas and oceans. Because it has been consistently exposed to pounding waves, sea garnet tends to have obtuse angles, smaller sizes and rounder shapes compared to rock garnet. Also because this garnet abrasive is extracted from seas and beaches, this abrasive has a higher chloride and salt content than regular rock garnet abrasive.

The main advantage is that sea garnet sand is a natural garnet from sea beach mines. It was served directly without any crushing and milling process. Since there are no cracks in the grain, it gets less dust and of heavier specific density. For waterjet cutting work, the 80 mesh alluvial garnet sand will get a smooth cutting performance. In the meantime, it won’t block nozzles and thus save time and cost.

Garnet Sand for Sandblasting is the Optimum Abrasive for Most Applications.

  • Clean – Garnet abrasive sand produces less dust than other expendable abrasives, making it ideal for use in tanks and other confined spaces.
  • Cost-Effective – Garnet sand abrasive lasts a long time. Garnet Abrasive is reusable and can be re-used several times under the right conditions.
  • Optimum Surface Profile – Garnet abrasive creates a superior surface for adhesion coating.
  • Environmentally Friendly – Abrasive Garnet Sand is inert and non-toxic, making it safe for use around water bodies. It is also very easy to clean, while its durability reduces the generation of dust.
Chemical Composition – Garnet Sand for Sandblasting
Silica SiO234-40%
Iron(Fe2O3+FeO)25-31%
Alumina Al2O317-21%
Magnesium MgO5-6%
Calcium CaO5.0-10.0%
Manganese MnO0-1.0%
Physical Characteristics – Garnet Sand for Sandblasting
Specific Gravity
3.8-4.1/cm3
Mohs Hardness
7.5+
Acid Solubility (HCL)
<1.0%
Bulk density
1.8-1.9 g/cm3
Chloride
10-15ppm(25ppm max)
Colour
Red & Brown
Melting point
1300℃
Grain shape
Sub angular
Toxic substances
none
Conductivity
25 ms/m
  Mineralogical Content – Garnet Sand for Sandblasting
Almandine garnet
97-98 %
Quartz
≤0.2%
Ilmenite
≤0.5%
Others
≤0.1%
Garnet Sand for Sandblasting Particle Size Distribution
MMMESHPERCENTAGE RETENTION
1.4001212/2420/4020/6030/6080
0.850200
0.6003030-400-50-5
0.4254040-5050-7010-250
0.300500-510-2025-500-100
0.25060 0-1025-4545-6030-40
0.18080  0-1510-2540-50
0.150100  0-55-200-5
0.125120   0-1
Packing: 1mt big bag or 25kgs PVC bags+1mt big bag
Weight1000 kg
Dimensions100 × 100 × 100 cm
